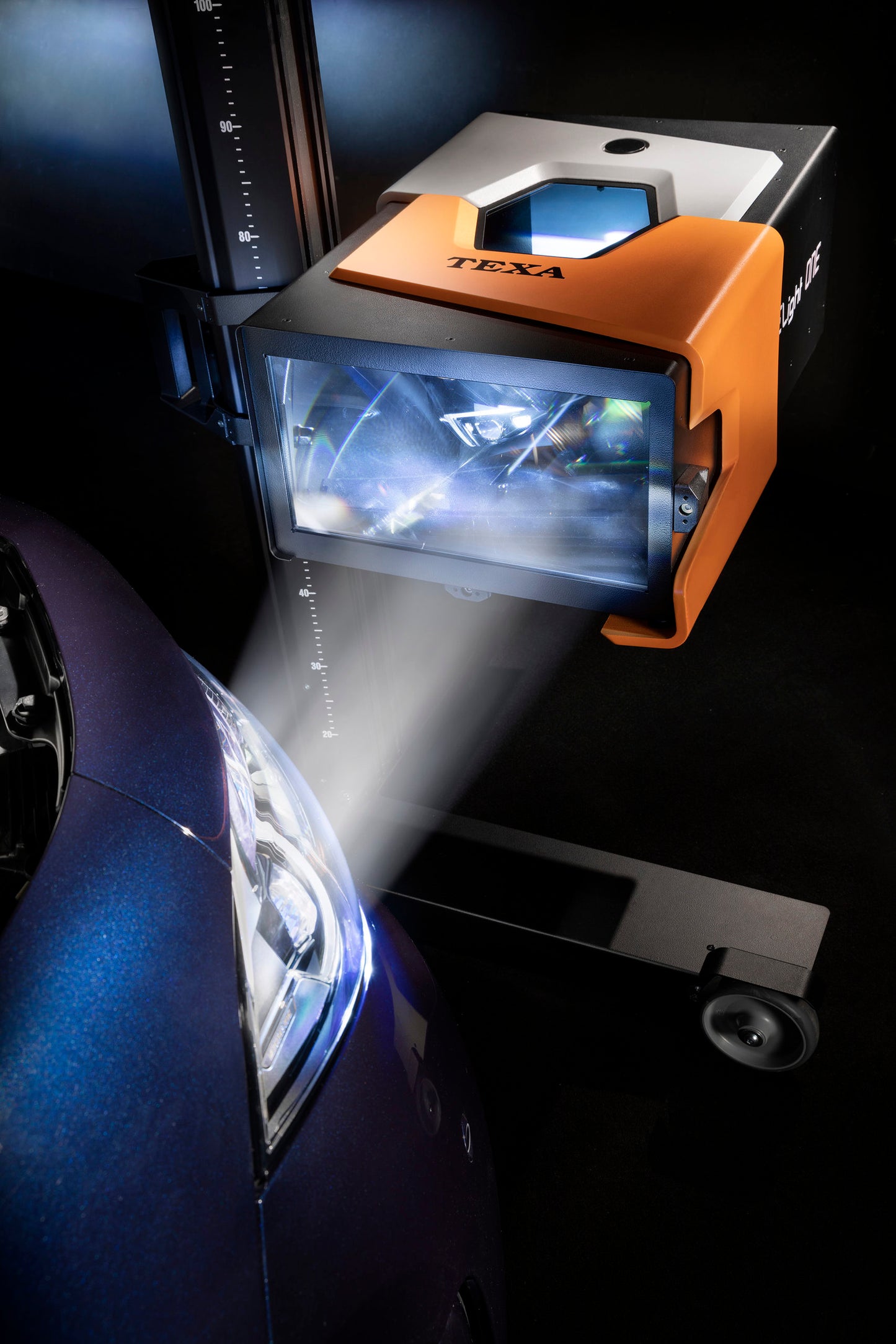

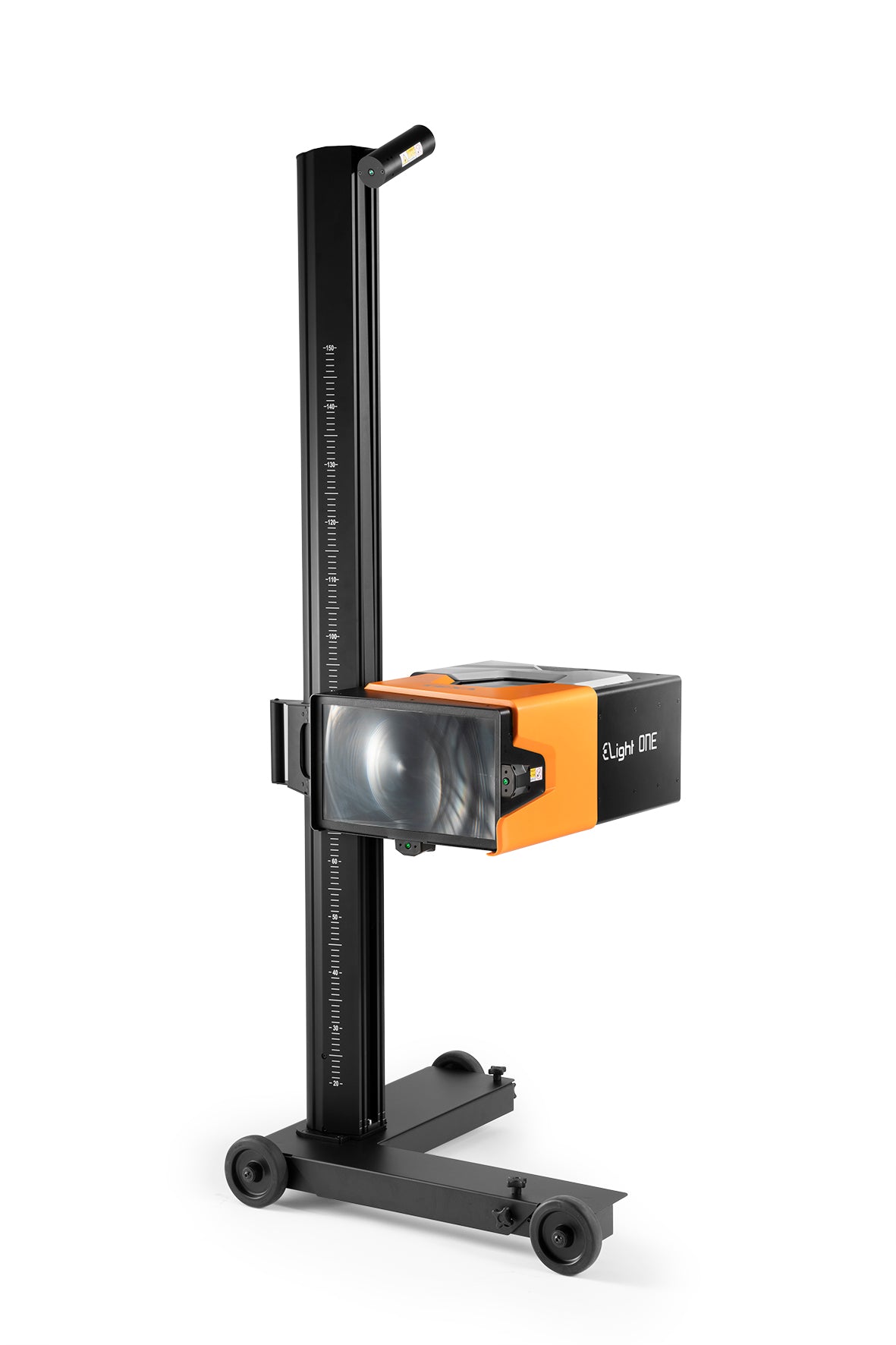

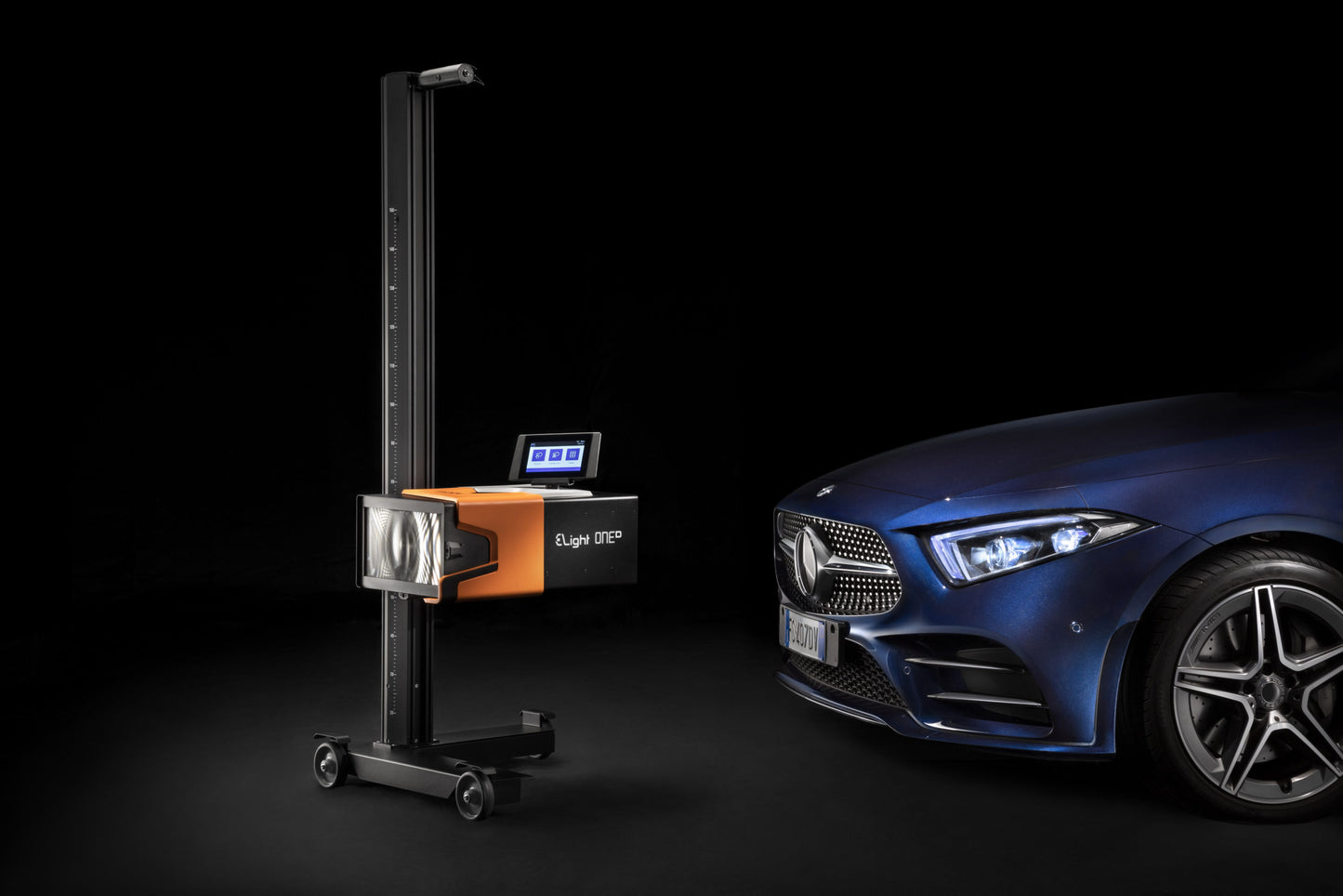

E-LIGHT is designed to work with the VCI of existing TEXA diagnostic customers to connect the tester directly to the vehicle under test. Using the TFT touch screen as well as analysing the headlight patterns the unit can interface with the vehicle ECU to put headlights into specific test modes for alignment.
• 52KG Weight
• 770 x 730 x 1850mm Dimensions
• 7” TFT LED LCD 800 x 480
• Thermal Printer 58mm 203DPI
• Measurable Light Sources, Halogen, Xenon, LED and Laser.
• 5 MP Camera
• 8 Hours Battery Operating time
• Type of measurement, Low beams, high beams, Fog Lights, ILS, DLA and Matrix.
• LAN, Wi-Fi, RS232 and Bluetooth® Connectivity.
What's Included?
• E-Light Unit
• Operating Software
• 2 Years Warranty
